Torre 1100 Sipe Concrete Batching Plant

Share:

Description:

Torre 1100 Sipe Concrete Batching Plant

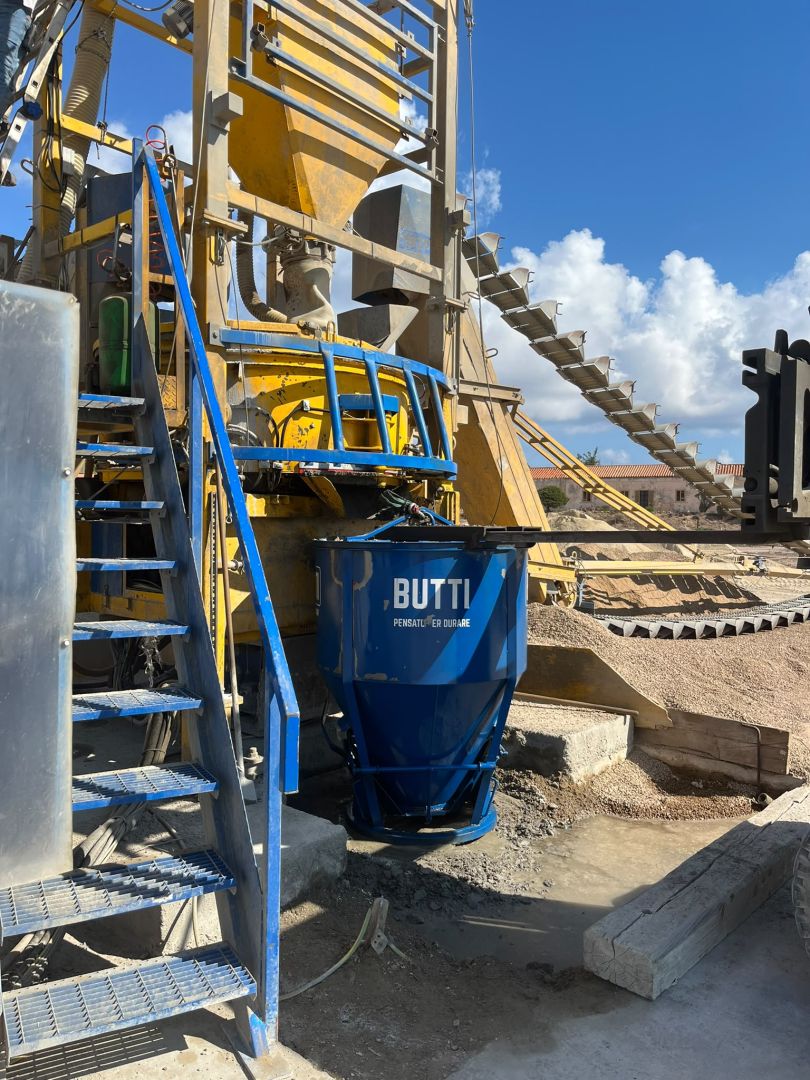

Concrete batching plant with a turbo mixer featuring wear-resistant segments, a frame, a monoblock for tower silos, 1 hydraulically rotating scraper arm for loading two aggregates, an aggregate scale with a lever mechanism and an electronic load cell, a hydraulic mixer discharge, electrical control panel for manual, automatic, and autonomous controls with a synoptic panel and 2 PWS control displays (4 sets), for dosing 4 aggregates and 2 cements, 12 recipes, volt/ampere display, cement screw conveyor with dosing unit and separate scale with electronic load cell, water system with tank and pulse injector, acoustic/visual minimum cement level indicator, batch counter, mixing drum with automatic discharge, cement blowing system with compressor, bucket with side chute, CE certified.


TOWER 1100
MIXER TANK DIAMETER 1800 mm
LOAD CAPACITY 1175 L
SOFT OUTPUT 750 L
MIXING ARMS: 5+2
MIXER MOTOR POWER: 18.5 kW
RADIUS MOTOR POWER: 5.5 kW
TOTAL INSTALLED POWER: 27.6 kW
POWER CONSUMPTION: 55.2
MONOBLOCK WEIGHT: 3410 Kg
Included: OPERATION AND MAINTENANCE MANUAL, CE CERTIFICATION
